ADM S7 / S9CL Functional comparison:

Product Highlights :

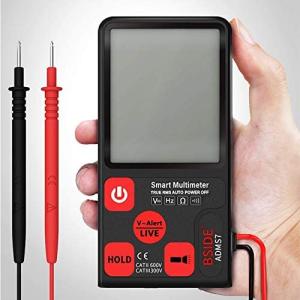

[ Unique Style - Delicate ] : ADMS7 is the latest generation multimeter of the BSIDE brand. This product has a similar appearance to a smartphone. It can meet the aesthetic needs of different people. It is very suitable as a gift.

[ Vibrant HD Display Engineered By BSIDE ]: Large 3.5" LCD 3-Line Display can show 3 test results on the screen, such as voltage, frequency and analog bar. ideal for home use, school use, or lab use, etc.

[ Simple/convenient/easy to use ]:

Designed with beginner in mind - Bside smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.

Multimeter with probes design lets you test safely and efficiently—no need to plug in and out probes, which not only can save learning and test time, but also prevent wrong insertion of ports.

[ Authorities Certification ! Product quality is guaranteed ! ]:

Flashlight design lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night. Hang hole design make it more portable.

[Details Show]:

[ Battery included ]: The product has two built-in battery and can be used directly after receiving the package.

If you need more complete testing capabilities, please order a ADMS9CL!

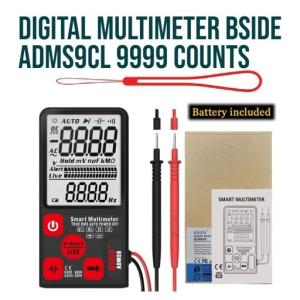

 - ADMS9CL is a comprehensive upgrade of ADMS7. (EBTN LCD Screen.Increase Test Function / Range.Upgraded Accessories Etc.)

Specifications:

Generation: 7th generation - 2019 release.

Display: 6000 counts(S7) / 9999 counts(S9CL).

True RMS.

DC Voltage Test : 600V±(0.8%+3).

AC Voltage Test : 600V ±(1.2%+5).

ADMS7 Resistance Test : 6000Ω ±(1.2%+3).

ADMS9CL Resistance Test : 10MΩ ±(1.2%+3).

Frequency Test : 1000Hz ±(1.0%+5).

ADMS9CL Capacitance Test : 1000uF/0.1uF (3.5%+8);

                                                 6000uF/1uF (4.5%+10).

ADMS9CL has a very fast test rate. (Complete the test within 1S).

Diode Test : Less than 1.0V diode automatic identification.(ADMS9CL).

V-Alert(Non-contact Voltage Detection):Intelligent display of dangerous voltage high, medium and low.(beep alarm sounds)

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: Intelligently reminds the cable line to connect or disconnect.(If the resistance is less than 30Ω, the beeper sounds)

Power: 3V (CR2032)* 2( Included )

Size: 136*67*12mm

Weight: 110g

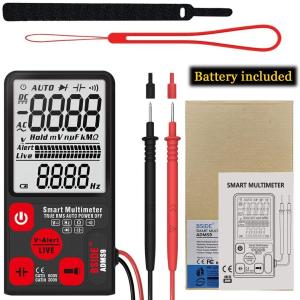

Package Includes:

1 x Multimeter.  1 x Test Lead.

1 x Carry Rope ( Gift ).  1 x Magic Paste ( Gift ).

1 x User Manual.  2 x Batterys (Built In).

1 x Packing Box.
